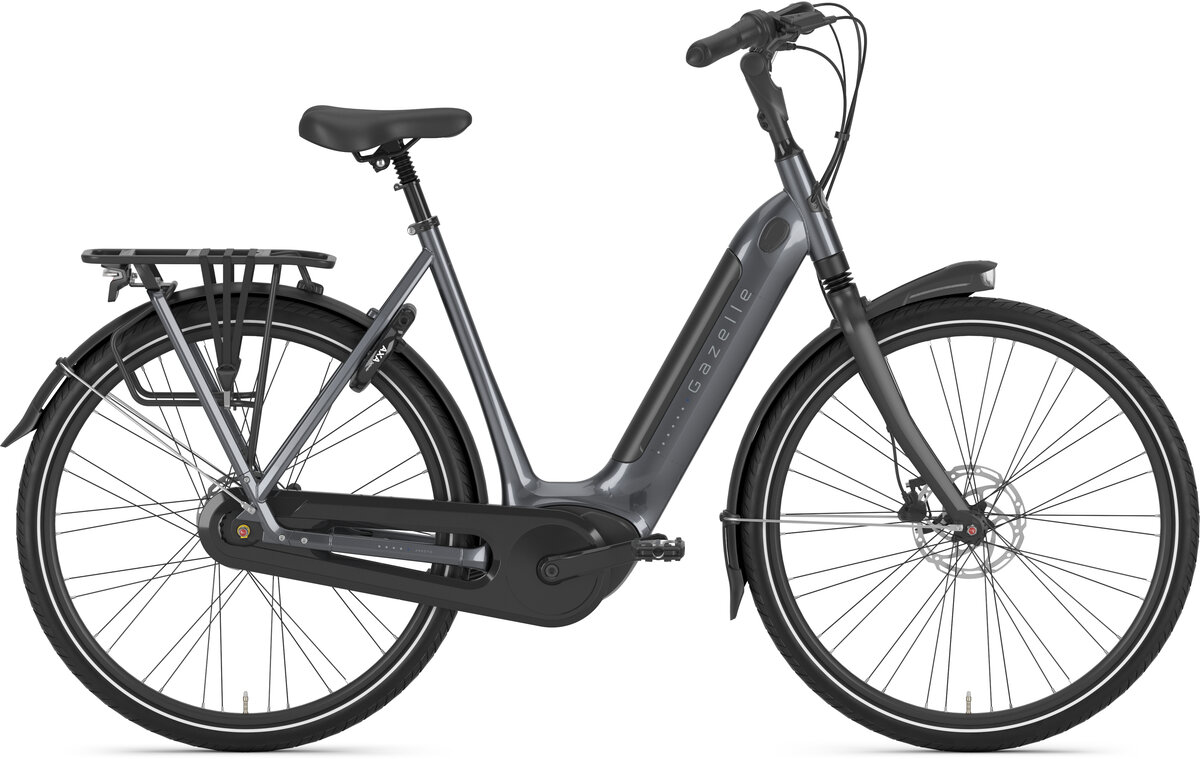

Gazelle Bikes Arroyo C8 HMB Elite
$3,699.99
Details
The Gazelle Arroyo C8 HMB Elite offers a joyful introduction to the best of both bike worlds: an easy, elegant Dutch-style bike and a masterfully designed machine that beautifully integrates with Bosch e-bike technology. Featuring an approachable low-step frame, relaxed geometry, and best-in-class components, the Arroyo C8 is a capable all-rounder for trips of any type or duration, thanks to a powerful motor, high capacity battery, and thoughtful accessories.
- Battery Recharge Time: 3-4 hours
- Max Assisted Speed: 20 mph
- Range: 40 - 80 miles
| Frame Size | Small (46) | Medium (53) | Large (57) |
|---|---|---|---|
| Standover (mm) | 436 | 436 | 436 |
| Effective top tube length (mm) | 571 | 593 | 605 |
| Head tube angle (°) | 68.5 | 68.5 | 68.5 |
| Effective seat tube angle (°) | 69.5 | 69.5 | 69.5 |
| Chainstay length (mm) | 482 | 482 | 482 |
| BB drop (mm) | 60 | 60 | 60 |
| Head tube length (mm) | 145 | 165 | 165 |
| Fork length (mm) | 475 | 475 | 475 |
| Fork offset (mm) | 55 | 55 | 55 |
| Wheelbase (mm) | 1097 | 1120 | 1131 |
| Stack (mm) | 621 | 640 | 640 |
| Reach (mm) | 339 | 354 | 366 |
| Frame Size | Height (inches) | Height (cm) |
|---|---|---|
| Small | 4'10” - 5’6” | 155 - 165cm |
| Medium | 5’6” - 5’10” | 164 - 174cm |
| Large | 5’10” - 6’3” | 172 - 182cm |
Specs
| Frame | Alloy |
|---|---|
| Fork | Aluminum, springing in headset, lightweight, 30 mm |
| Wheels | Rodi Viper |
| Hubs | Shimano Nexus, 8 speeds |
| Spokes | Stainless steel, extra strong |
| Tires | Schwalbe Energizer Active Plus, 47-623 |
| Crankset | Aluminum |
| Shifters | Shimano Nexus, 8 speeds, |
| Rear Derailleur | Shimano Nexus, 8 speeds, |
| Chain | KMC extra strong, special for e-bike |
| Brakes | Tektro, HD-T280, 2 piston |
| Brake Levers | Tektro |
| Handlebars | Aluminium, comfort curved model |
| Tape/Grips | Gazelle Aero leather |
| Stem | Gazelle Switch, manually steplessly adjustable |
| Seatpost | Sprung |
| Saddle | Selle Royal Loire |
| Pedals | Sold separately |
| Accessories & Extras | Gazelle Fendervision, 50 Lux |
| Motor | Bosch Active Line Plus 3.0 (50Nm) |
| Battery | Bosch Integrated 500Wh |
| Controller/Display | Bosch Purion |
| Charger | 4 amp |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black - Matte / Small | 8717231359655 | G3190 | 210000040330 |
