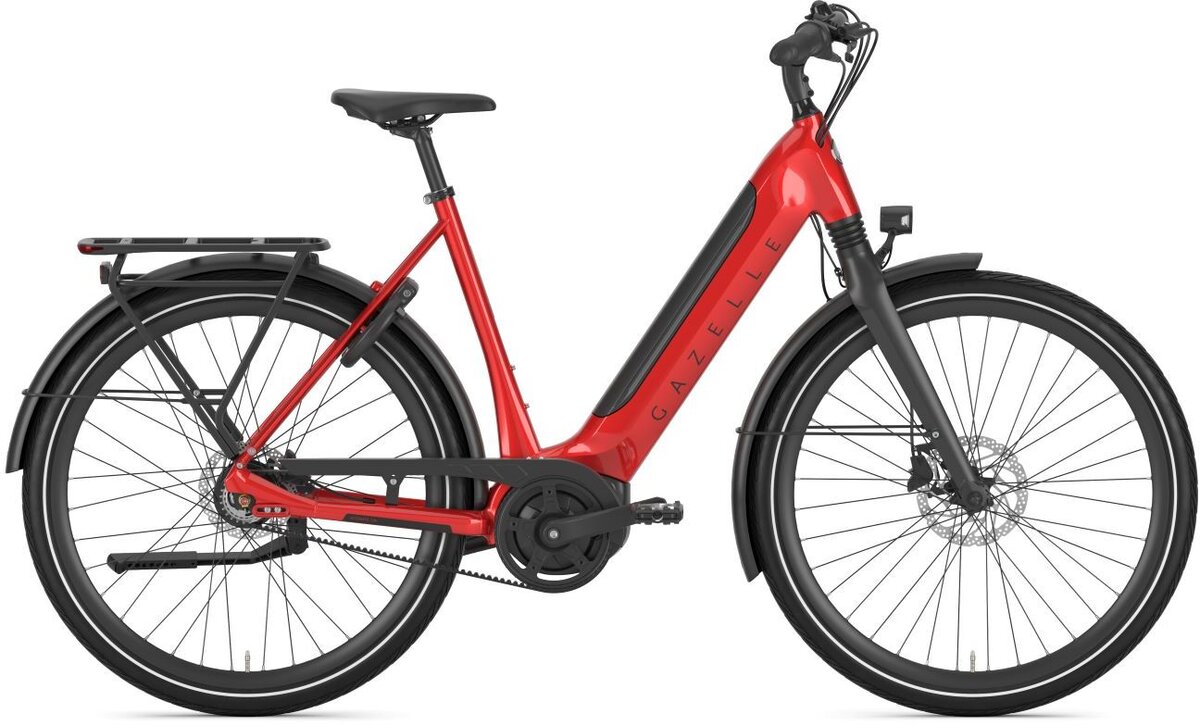

Gazelle Bikes Ultimate C8 Smart System

Gazelle Bikes Ultimate C8 Smart System
  • Color: Champion Red
  • Color: Pine Green
$4,199.00
Color:
Size: Select size
Wheel Size: 28-inch
Please select options Unavailable
.Thank you for using Bicycles NYC for your cycling needs. We will contact you when your purchase is available for pick-up. Call 212-794-2929 or email Info@BicyclesNYC.com for additional details. REMINDER: Bicycles sales will incur a surcharge associated with a wide range of pandemic and warranty related expenses. The surcharge will appear as a "shipping charge" at checkout. Children's Bikes - $35. Adult Bikes - $50, and all Electric Bikes - $150.

Details

The Ultimate C8 combines a dynamic appearance with exceptional comfort. In an active riding position you will experience excellent road holding thanks to the bike’s low center of gravity. Low-maintenance components such as the Nexus gear hub and the durable belt drive guarantee ease of operation and flawless functioning — as well as carefree cycling pleasure!

- Stable and rigid frame with an integrated battery
- Little maintenance required with the Nexus hub and belt drive
- Powerful, hydraulic disc brakes
- Front fork with integrated suspension

Sizes:
Frame sizeXS (40)S (45)M (50)L (55)S (46)M (53)L (57)
A Size (mm) 400 450 500 550 460 530 570
B Effective top tube length (mm) 571 580 597 614 603 603 623
C Head tube angle (°) 69 70.5 70.5 70.5 70.5 70.5 70.5
D Effective seat tube angle (°) 73 73 73 73 71.5 71.5 71.5
E Chain stay length (mm) 495 494 494 494 494 494 494
F BB Drop (mm) 55 60 60 60 55 55 55
G Head tube length (mm) 160 160 170 170 150 150 170
H Fork length (mm) 464 450 450 450 485 485 485
I Fork offset (mm) 44 60 60 60 50 50 50
J Wheelbase (mm) 1137 1125 1142 1159 1141 1141 1161
K Stack (mm) 627 637 646 646 639 639 659
L Reach (mm) 379 385 399 417 389 389 403
Sizes:
Height (rider)Size
4'10" - 5'6" S (45)
5'6"- 5'10" M (50)
5'10" - 6'3" L (55)

Specs

Frame Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Fork Mono Integrated, Aluminum, 40 mm
Rims Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Hubs Shimano
Tires Schwalbe Energizer Plus, 50-622
Shifters Shimano Nexus 8
Brakes Front brake: hydraulic disc brake, Shimano BR-MT200, 180 mm 2 piston
Rear brake: hydraulic disc brake, Shimano BR-MT200, 160 mm, 2 piston
Brake Levers Shimano BL-MT200
Handlebars Gazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Tape/Grips Gazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem steplessly adjustable
Saddle Selle Royal Essenza Plus
Accessories & Extras Front light: Herrmans MR8
Rear light energy source: battery, Lock: Axa Imenso, ring lock with an option for a plug- in cable to attach your bike to a fixed object for extra protection against theft, Kickstand: Ursus Mooi, drop-down rear stand, Rear carrier: aluminum MIK HD system carrier
Motor Bosch Smart System Active Line Plus, 50 Nm
Battery Bosch Battery 500 Wh
Controller/Display Bosch Purion 200
Charger Bosch Compact charger, 2 Ah

* Subject to change without notice.

Part Numbers

Option UPC MPN
Champion Red / 46cm / 28-inch 08717231364116 G3903
Champion Red / 53cm / 28-inch 08717231364123 G3905
Champion Red / 57cm / 28-inch 08717231364130 G3906
Pine Green / 46cm / 28-inch 08717231364086 G3898
Pine Green / 53cm / 28-inch 08717231364093 G3900
Pine Green / 57cm / 28-inch 08717231364109 G3901
