Details
Arrive at work fast and relaxed with the Ultimate T10+ HMB. A dynamic contemporary design combined with the integrated motor and battery gives the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminum frame is exceedingly stable, which translates into sporty handling and optimum agility. In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips, and a suspension front fork.
Sporty design meets comfort
Available in both high and mid-step options, the streamlined, racy frame is complemented by a bump-absorbing Suntour Mobie 45 suspension front fork with 80mm of travel.
Integrated Bosch battery
The integrated in-tube design offers a sleek and modern look, and the high-capacity 500Wh battery provides an extensive range.
Bosch Performance Line Speed Motor
The latest generation Bosch Performance Line Speed motor creates a smooth ride with powerful assistance (85Nm of torque) for fast, effortless cycling.
- Comfortable yet sporty cycling with powerful assistance up to 28 mph
- High comfort level on poor road surfaces thanks to the outstanding suspension front fork
- Relaxed posture combined with powerful performance means that no trip is too far
- Design, integration, and comfort: the Ultimate T10 Speed has it all
| Height (rider) | Frame Size |
|---|---|
| 4'10" - 5'6" | Small (46) |
| 5'6"- 5'10" | Medium (53) |
| 5'10" - 6'3" | Large (57) |
Specs
| Fork | Alloy Telescoping Suntour Fork 45-AIR 100mm tapered |
|---|---|
| Rear Shock | No |
| Rims | Ryde Dutch 19 28 inch |
| Hubs | Shimano Deore 10 speed |
| Spokes | Stainless Steel |
| Axles | Shimano |
| Tires | Swalbe Enegizer Plus 47 - 622 |
| Crankset | Miranda Delta |
| Shifters | Shimano BL-MT520 |
| Front Derailleur | No |
| Rear Derailleur | Shimano Deore |
| Cassette/Freewheel | 48 / 11-36 |
| Chain | KMC 10sp eBike |
| Brakes | Shimano Deore Hydraulic Disc |
| Brake Levers | Shimano Deore Hydraulic Disc |
| Handlebars | Active |
| Tape/Grips | Ergon Ergonomic |
| Stem | Steplessly Adjustable |
| Seatpost | Alloy |
| Saddle | Selle Royal Essenza |
| Pedals | Gazelle Pedal |
| Accessories & Extras | Front (50 lumen) & Rear Lights, Gazelle Bell |
| Motor | Bosch Performance Line Speed (85MNm) Gen. 4.0 |
| Battery | Bosch Integrated 500Wh |
| Controller/Display | Bosch Purion |
| Charger | 4 amp |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|

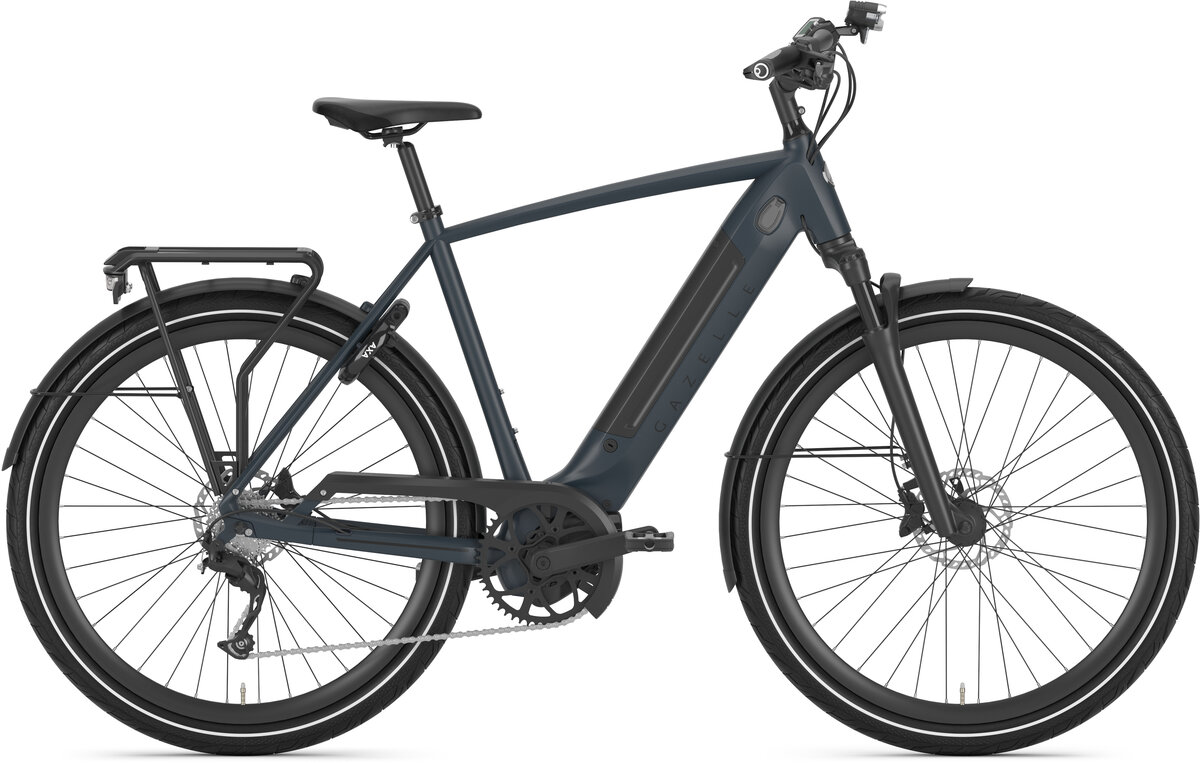

| Orion Blue Matte / 53cm | 8717231359716 | G3203 | |

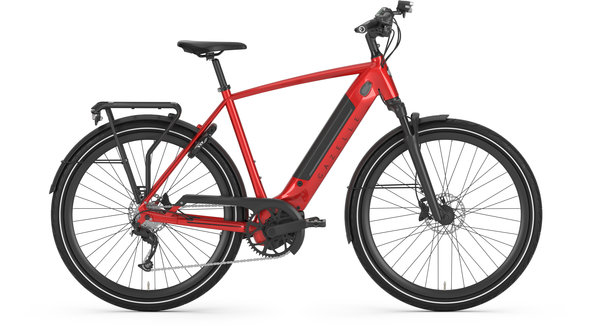

| Champion Red Gloss / 53cm | 08717231352786 | G2420 | 210000039086 |
