Tern Quick Haul D8 - 2022

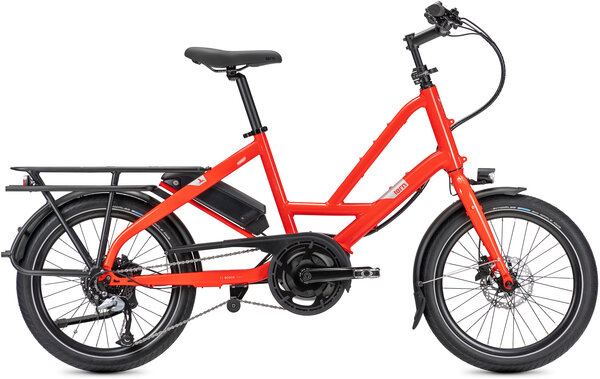

Tern Quick Haul D8
  • Color: Tabasco
$2,499.00
Color: Tabasco
Size: One Size
Please select options Unavailable
.Thank you for using Bicycles NYC for your cycling needs. We will contact you when your purchase is available for pick-up. Call 212-794-2929 or email Info@BicyclesNYC.com for additional details. REMINDER: Bicycles sales will incur a surcharge associated with a wide range of pandemic and warranty related expenses. The surcharge will appear as a "shipping charge" at checkout. Children's Bikes - $35. Adult Bikes - $50, and all Electric Bikes - $150.

Details

What Makes it a D8?
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights:
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160—195 cm (5'3"—6'5"), and also riders 145—180 cm (4'9"—5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories-easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power-even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Frame Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork Cargo, steel, EFBE approved: 150 kg
Rims Kinetix Comp, for disc
Hubs Shimano Disc
Spokes Stainless Steel
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Bottom Bracket Motor integrated
Crankset Tern custom, forged 6061-AL crankarm
Shifters Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur Shimano Altus Shadow
Cassette/Freewheel Shimano 11-34T, 8 spd
Chain KMC for eBike, 8 spd
Brakes Shimano, hydraulic disc
Brake Levers Shimano, hydraulic disc
Handlebars Low riser, 31.8, 6061-AL
Tape/Grips Velo ergonomic, lock-on
Stem Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset TH, cartridge bearings
Seatpost 31.6 mm, 6061-AL, micro-adjust clamp
Saddle Velo Comfort
Pedals Urban with non-slip surface, sealed bearings
Accessories & Extras BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: Pletscher design, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Herrmans, 120 lumens REAR LIGHT: Herrmans FENDERS: Chromeplastic, stainless hardware RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Motor Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph (US)
Battery Bosch PowerPack 400
Controller/Display Bosch Purion
Charger Compact Charger, 100-240V, 2A

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Tabasco / One Size 810067160247 44539
